Alldoo Micropump Co.,Ltd is a leading manufacturer of diaphragm pumps in China,we specialize in the designing and production of various diaphragm micropumps,including micro diaphragm vacuum pumps,gas pumps,water pumps,oil pumps and liquid pumps with low flow range and small size.
Relying on abundant technical strength of micro pump,we devotes ourselves to develop and design the micro pump series with reliable quality and reasonable price, suitable for the fields of vacuum,air,gas or liquid,water transferring, cooling systems,sampling, medical or chemical analysis,vending machines,coffee machines,blood pressure measuring,home appliance,toys and many other areas of industry supply.
We also design and produce micro pumps according to the requirements of customers and accept OEM orders.
|
Type
|
Voltage |
Free flow |
Max vacuum |
Max pressure |
Current |
Size |
| CMP40-2V |
12 VDC |
10 L/min |
-700mbar |
1.2 bar |
1 A |
40*60*95mm |
| CMP40-2V |
24 VDC |
10 L/min |
-700mbar |
1.2 bar |
0.5A |
40*60*95mm |
| CMP40-1P |
12 VDC |
6 L/min |
-550mbar |
1.5 bar |
0.8A |
40*60*95mm |
| CMP40-1P |
24 VDC |
6 L/min |
-550mbar |
1.5 bar |
0.4A |
40*60*95mm |
| CMP40-2P |
12 VDC |
6 L/min |
-700mbar |
2 bar |
0.9A |
40*60*95mm |
| CMP40-2P |
24 VDC |
6 L/min |
-700mbar |
2 bar |
0.4A |
40*60*95mm |
| CMP40-6A |
12 VDC |
7 L/min |
-400mbar |
0.8 bar |
0.5A |
40*60*95mm |
| CMP40-6A |
24 VDC |
7 L/min |
-400mbar |
0.8 bar |
0.35A |
40*60*95mm |
| CMP40-6R |
12 VDC |
6 L/min |
-500mbar |
0.8 bar |
0.5A |
40*60*95mm |
| CMP40-6R |
24 VDC |
6 L/min |
-500mbar |
0.8 bar |
0.3A |
40*60*95mm |
| CMP40-8R |
12 VDC |
8 L/min |
-600mbar |
1 bar |
0.7A |
40*60*95mm |
| CMP40-8R |
24 VDC |
8 L/min |
-600mbar |
1 bar |
0.4A |
40*60*95mm |
| CMP40-10R |
12 VDC |
10 L/min |
-700mbar |
1.2 bar |
0.9A |
40*60*95mm |
| CMP40-10R |
24 VDC |
10 L/min |
-700mbar |
1.2 bar |
0.5A |
40*60*95mm |
| CMP40-4W |
12 VDC |
6 L/min |
-700mbar |
1.2 bar |
0.6A |
40*66*95mm
(Brushless Motor)
|
| CMP40-4W |
24 VDC |
5 L/min |
-700mbar |
1.2 bar |
0.35A |
40*66*95mm
(Brushless Motor)
|

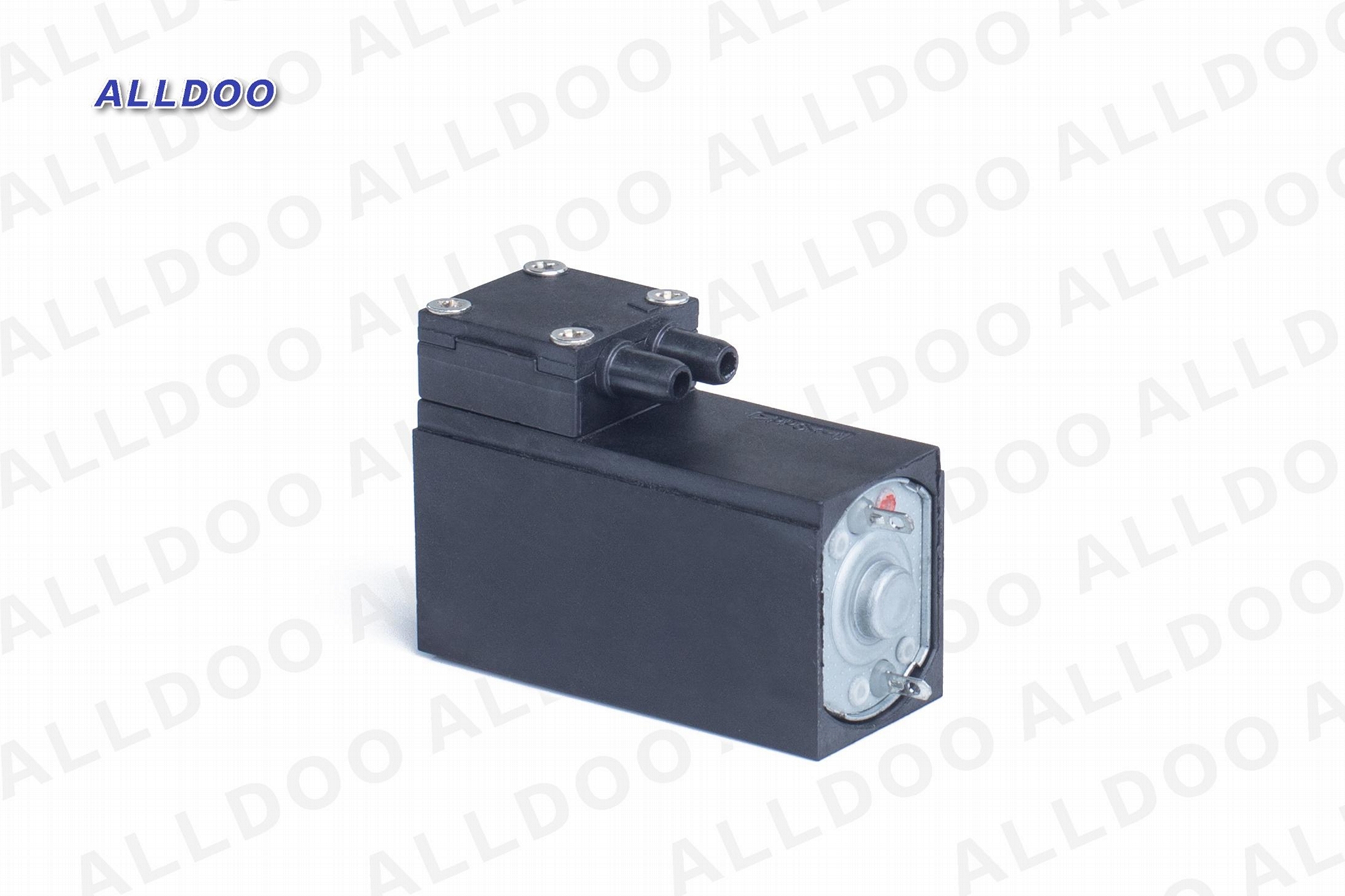

CMP40,miniature air compressors,micro pump are well suited for transferring,evacuating and compressing air and neutral or corrosive gases as well as vapors.
Technical Features:
1.Uncontaminated flow.
2.Non-metallic construction.
3.Compact size.
4.Maintaince free.
5.High level of gas tightness thanks to the closed diaphragm surface and special sealing system.
6.Can operate in any installed position
